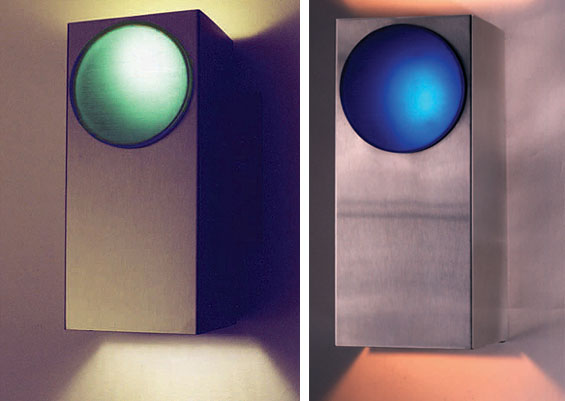

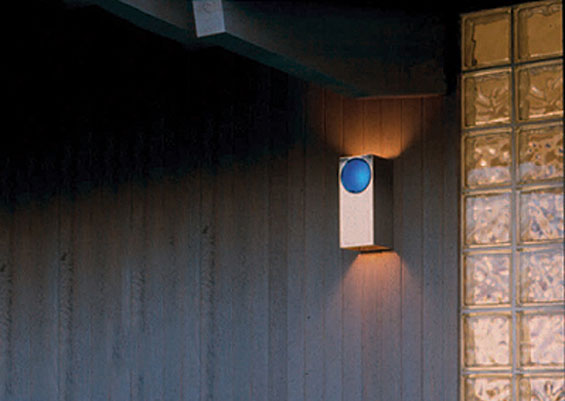

A rectangular wall fixture of brush finish stainless steel. Provides up and down light with a glowing, back lit disc of matte finish acrylic.
BD 9000 (ADA Compliant)
BD 9001
BD 9000 : 5w x 3.875d x 8h,
BD 9001 : 5.25w x 5.25d x 12h
22 gauge stainless steel, copper or brass with acrylic lens.
Spec color diffuser: Acrylic: light green, opal, cobalt or custom.
BD 9000 : (2) medium base lampholders for appliance lamp and PAR 20 lamp.
BD 9001 : (2) medium base lampholders for incandescent or retro fit LED
Notes: Wet location available.
